UK and subsidising electric cars: is it working so far?

7
Let’s move from bio-ethanol to look into another sources of renewable energy, but still discussing about transportation. Transport has been identified as one of the main sources of human-induced greenhouse gas (GHG) emissions and fossil-fuels consumption (Lam & Louey, 2006).
UK and subsidising electric cars: is it working so far?

Domestic transport accounts for 22% of UK greenhouse gas emissions, being road transportation 20% of them. (DECC, 2011) The need to reduce CO2 emissions as well as oil scarcity have driven towards looking for alternatives as plug-in electric vehicles, that would shift current transportation energy demand to a certain extent from crude oil to electricity (Galus & Andersson, 2008). Two years ago, the UK government started offering grants up to £5000 (aprox US $7850) for electric cars, in order to increase the market share of electric vehicles. But the question is: is it the right strategy to do so? Let us analyse the different aspects of using electric vehicles.

1) Zero carbon emissions?

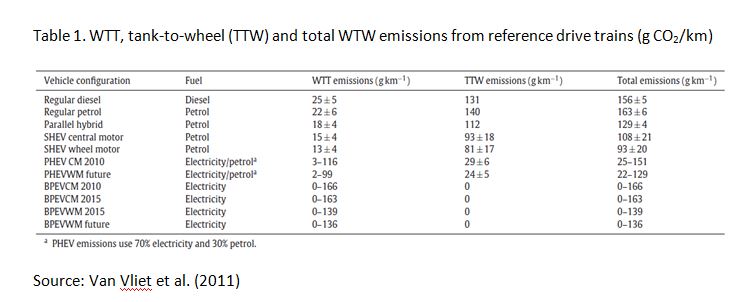

Electric vehicles are widely publicized as zero carbon emissions, but this is true only at tailpipe emissions level and assuming they work with electricity provided from renewable sources. In a study made by Van Vliet et al. (2011) several electric vehicle (EV) configurations are compared based on their greenhouse gas (GHG) emissions and cost within 2015 scenario. Table 1 shows the different well-to-tank (WTT), tank-to-wheel (TTW) and total well-to-wheel (WTW) emissions (g CO2/km) from reference car configurations, using petrol, diesel and electricity produced by wind or pulverised coal subcritical power plants.



As shown, WTT emissions, depending on the electricity source, can impact the overall vehicle emissions.

2) Customer perception

Several authors have agreed that attitudinal barriers from the potential costumers are highly important inhibiting the adoption of cleaner vehicles. (Gould & Golob, 1998; Lane & Potter, 2007) Part of those barriers also comes from the perception of higher capital costs of electric vehicles compared with conventional ones.

Focusing our analysis in Nissan Leaf model (one of the designs subsidised by UK government) it has identified advantages as comfortable to drive, very quiet performance, even at speed. But drawbacks identified are limited range speed, long actual recharge time, as well as ludicrous price, even with subsidy. Potential battery life is another one. Currently Li-ion batteries have a calendar life of 5 years approx, so one mid-life replacement may be necessary. (Van Vliet et al., 2011; Reid, 2010)

So far, this has been one of the drawbacks from the slow market share increase the electric cars have gotten in UK. According to Massey (2013) top reasons consumers would not switch into EV from conventional is the “fear of losing power on the road”, and the lack of enough public plug-in points to replenish car battery charge.

3) Battery technology: current state

There are several areas that need still further improvement to make electric vehicles competitive compared with the performance of conventional petrol vehicles, like increased motor drive efficiency, power density, and higher controllability and wider speed range. (Cheng et al., 2005) Timmermans et al. (2005) as cited by Van Mierlo et al. (2006), concluded in their LCA (where several batteries technologies were compared on a holistic approach) that Li-ion battery is the preferred option, regarding technical, economical and environmental aspects. Matheys and Van Autenboer (2005) obtained similar results. However, as shown by Figure 1, there are still many challenges for electrical energy storage systems in vehicles, not only technical. (Steiger, 2009)



4) Electricity supply system

The economics and environmental impact of the use of EVs relies in well-to-wheel emissions, which depends highly on electricity mix. (Granovskii et al., 2006) Figure 2 shows that current electricity mix affect UK emissions per car to be almost similar to advanced hybrid combustion designs. (Citi, 2009). This matches figures from the King Review, that estimates current emissions of 80 g CO2/km and projected reduction to 30 g CO2/km by 2030 for predicted mix that includes increased renewable, nuclear and coal with CCS. (King, 2007 as cited by Offer et al., 2010).

So basically two effects from EVs must be highlighted: the importance to have a reliable charging infrastructure and the improvement of the electricity supply mix, as well as reducing WTT greenhouse gas emissions. (CST, 2005) So far, this has been one of the critical issues in the UK and the reason why EV sales have fallen flat (from 111 in 2010 to 1,052 in 2011 and just 2,237 cars sold in 2012), as mentioned by Massey (2013).

Webster (1999) reviews three potential penetration scenarios, from a more conservative 0.1% to a highly optimistic 10%, brings to the table several issues. One is that several studies have projected that an EV increases household electricity consumption in an industrialised country by 50%. (Van Vliet et al., 2011). The second is that as higher the prospectus, higher the potential peak additional load due to increased customer demands. But it is quite important to involve the electricity distribution company when introducing a new EV scheme in order to devise the most appropriate charging system to the benefit of all stakeholders. (Wittenberg & Meurice, 1993)

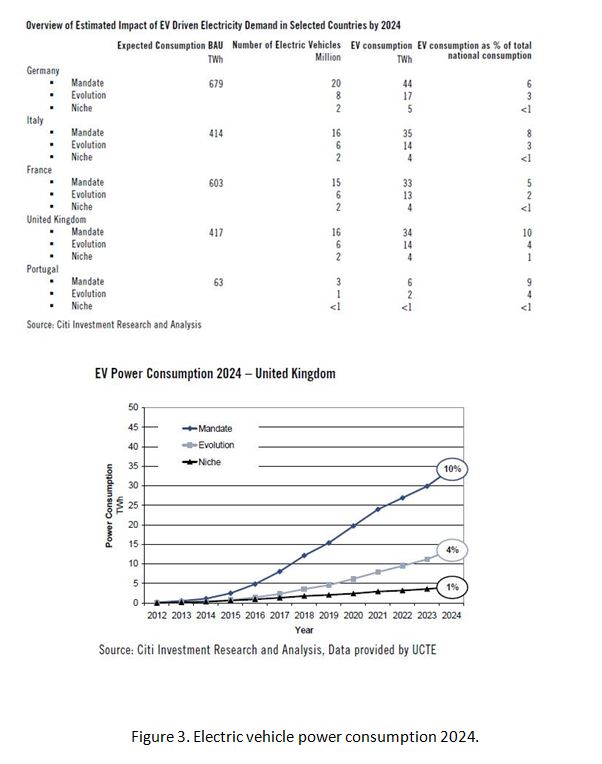

Similar results are obtained by Citi (2009) where EV power consumption is estimated for three scenarios, depicting the speed of growth of plug-in vehicles. Figure 2 shows expected power consumption and expected market share for EV.

Conclusions

Based on the previous evidence, the assumption that electric vehicles could become a major contributor to the transport sector based on government grants is quite optimistic. As reviewed previously, there are several factors that affect the public perception and the spread use of EVs: lack of infrastructure for electric chargers, high capital costs, as well as operational drawbacks as reduced range speed. Also, if increase of renewable sources of electricity generation is not achieved while switching to electric vehicles, gain in overall CO2 emissions would not be significant to achieve the climate change targets. Economic incentives per se are not enough to stimulate behavioural change. (Lane & Potter, 2007) A potential feasible intermediate choice would be hybrid EV to overcome EV drawbacks while reducing CO2, and relying more in biofuels use.

It seems that our society is facing a similar scenario as the beginning of 20th century, when electric, steam and gasoline engine vehicles were competing to prevail. However, based on customer demand, their expectations and requirements regarding desired choice of vehicle, it is quite certain that conventional design will continue to dominate the automotive market at least in the short to mid-term. (Honda, 2010) Offer et al. (2010) conclude in their study that currently capital and running costs are higher for EV, but in a 2030 projection capital costs could drop significantly, but still the market share would be low. It is the challenge for UK transport policy, academic and industry research to propose innovative measures to help accelerate the shift to low carbon vehicles and fuels to help reaching UK climate change targets. (Lane & Potter, 2007) Without an integrative strategy to provide available charging infrastructure, as well as increasing renewable sources in power grid mix, subsidising EVs would not be enough to decrease CO2 emissions.

References

Campanari, S. et al., 2009. Energy analysis of electric vehicles using batteries or fuel cells through wheel-to-wheel driving cycle simulations. Journal of Power Sources. [Online] 15 January 2009. 186 (2) pp. 464-477. Available at:   http://dx.doi.org/10.1016/j.jpowsour.2008.09.115 [Accessed 15 June 2013]

Citi, 2009. All Hail the Electric Car… But Where Will We Plug Them? Citigroup Global Markets. [Online] 23 September 2009. Available at: http://www.apve.pt/upload/docs/citi.pdf [Accessed 15 June 2013]



Cheng, M. et al., 2005. Design and analysis of a novel stator–doubly-fed doubly salient motor for electric vehicles. Journal of Applied Physics. [Online] 17 May 2005, 5. Available at: http://ee.seu.edu.cn/~mcheng/JAP05.pdf [Accessed 15 June 2013]



CST, 2005. An electricity supply strategy for the UK. Council for Science and Technology. [Online] May 2005. Available at: http://www.bis.gov.uk/assets/bispartners/cst/docs/files/whats-new/05-2179-electricity-supply-strategy.pdf [Accessed 15 June 2013]

DECC, 2011. UK Carbon Plan. HM Government: Department of Energy and Climate Change. [Online] Available at: http://webarchive.nationalarchives.gov.uk/20121217150421/http://decc.gov.uk/en/content/cms/tackling/carbon_plan/carbon_plan.aspx [Accessed 15 June 2013]

Galus, M.D. & Andersson, G., 2008. Demand Management of Grid Connected Plug-In Hybrid Electric Vehicles (PHEV). 2008 IEEE Energy 2030 Conference. Atlanta, GA USA 17-18 November 2008. Available at: http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=4781014 [Accessed 15 June 2013]

Gould, J. & Golob, T.H., 1998. Clean air forever? A longitudinal analysis of opinions about air pollution and electric vehicles. Transportation Research Part D: Transport and Environment. [Online] May 1998, 3(3) pp. 157-169. Available at: http://dx.doi.org/10.1016/S1361-9209(97)00018-7 [Accessed 15 June 2013]

Granovskii et al., 2006. Economic and environmental comparison of conventional, hybrid, electric and hydrogen fuel cell vehicles. Journal of Power Sources. [Online] 22 September 2006, 159 (2) pp. 1186-1193. Available at:   http://dx.doi.org/10.1016/j.jpowsour.2005.11.086 [Accessed 15 June 2013]

Honda, 2010. European Strategy on Clean and Energy-efficient Vehicles Public Hearing. [Online] Honda Motor Europe Ltd. Available at: http://ec.europa.eu/enterprise/sectors/automotive/files/pagesbackground/competitiveness/contribution_honda_en.pdf [Accessed 15 June 2013]

Lam, L.T. & Louey, R., 2006. Development of ultra-battery for hybrid-electric vehicle applications.  Journal of Power Sources. [Online] 25 August 2006, 158 (2) pp. 1140-1148. Available at:   http://dx.doi.org/10.1016/j.jpowsour.2006.03.022 [Accessed 15 June 2013]

Lane, B.  & Potter, S., 2007. The adoption of cleaner vehicles in the UK: exploring the consumer attitude – action gap. Journal of Cleaner Production. [Online] 15 (2007) pp. 1085-1092. Available at: http://design.open.ac.uk/potter/documents/Cleancarslaneandpotter.pdf [Accessed 15 June 2013]

Massey, R., 2013. Government invests another £37million in electric cars... despite only 2,000 being sold last year. Daily Mail Online. [Internet] 19 February. Available at: http://www.dailymail.co.uk/news/article-2281194/Government-invests-37m-electric-cars-despite-2-000-sold-year.html#ixzz2WJv65CgC  [Accessed 15 June 2013]

Offer, G.J. et al., 2010. Comparative analysis of battery electric, hydrogen fuel cell and hybrid vehicles in a future sustainable road transport system. Energy Policy. [Online] January 2010. 38 (1). Available at: http://dx. doi/10.1016/j.enpol.2009.08.040 [Accessed 15 June 2013]

Matheys, J. & Van Autenboer, W., 2005. SUBAT: Sustainable Batteries Overall Assessment. SUBAT Project. [Online] Brussels, Belgium. Available at: http://www.battery-electric.com/subatdocs/WP5-006.pdf [Accessed 15 June 2013]

Reid, R., 2010. Nissan Leaf Review. [Online] CNET UK. 1 November 2010. Available at: http://reviews.cnet.co.uk/cars/nissan-leaf-review-50001349/ [Accessed 15 June 2013]

Steiger, W., 2009. Car Electrification - Path towards Sustainable Road Transport? EC Sustainable Development Conference. [Online] Brussels, Belgium 26 May 2009. Available at: http://ec.europa.eu/research/sd/conference/2009/presentations/6/wolfgang_steiger_-_car_electrification.pdf#view=fit&pagemode=none [Accessed 15 June 2013]

Van Mierlo, J. et al., 2006. Which energy source for road transport in the future? A comparison of battery, hybrid and fuel cell vehicles. Energy Conversion and Management. [Online] October 2006, 47 (17) pp. 2748-2760. Available at: http://dx. doi.org/10.1016/j.enconman.2006.02.004 [Accessed 15 June 2013]

Van Vliet, O., et al., 2011. Energy use, cost and CO2 emissions of electric cars. Journal of Power Sources. [Online] 15 February 2011, 196 (4) pp. 2298-2310. Available at:   http://dx.doi.org/10.1016/j.jpowsour.2010.09.119 [Accessed 15 June 2013]

Webster, R., 1999. Can the electricity distribution network cope with an influx of electric vehicles? Journal of Power Sources. [Online] July 1999, 8 (2) pp. 217-225. Available at:   http://dx.doi.org/10.1016/S0378-7753(98)00262-6 [Accessed 15 June 2013]

Wittenberg, D.O. & Meurice, J.K., 1993. Electric vehicles: A new challenge for utility planners. The Electricity Journal. [Online] April 1993, 6 (3) pp. 46-53. Available at:   http://dx.doi.org/10.1016/1040-6190(93)90051-L [Accessed 15 June 2013]
