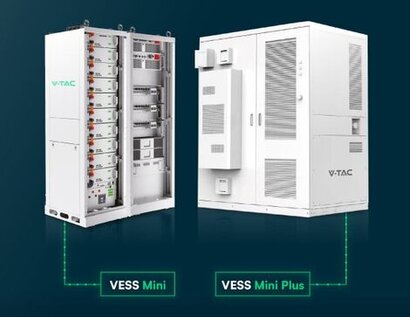

The VESS Mini is a complete energy storage system designed with an intelligent monitoring system for remote analysis, troubleshooting, and basic monitoring. It will be available in 30K and 60K.
For residential and systems with lower energy requirements, V-TAC offers a LiFePO4 battery with a storage capacity of 20 kWh and a rated voltage of 204.8 V. It has a depth of discharge (DOD) of 8000 cycles at 80 percent.
“With the record-level hike of energy prices in Europe, the brand has focused its research & development efforts on developing its energy storage range with higher capacities for larger scale systems and helping clients achieve their ROI fast” said a V-TAC representative. “Through our strengthened logistics channels, the VESS Mini and the VESS Mini Plus will be available ninety (90) days after order placement and can be shipped to any country in the UK and EU. Our partner distributors in Europe also offer a ten-year warranty to provide quality assurance to our clients.”
Features of the VESS Mini
All-in-one centralised design with cloud-based monitoring capability
Optimised with on-grid and off-grid applications
Designed for quick, easy installation & maintenance
Strong battery and power cabinet
Modular and scalable design enabling multiple MW of rated power and MWh of capacity
Optional specifications: isolation transformer, UPS, fire fighting system, generator compatibility
VESS Mini 30K
AC: Normal Power 30kW
PV: 45kW / Max 135kW (optional)
Battery Nominal Energy: 51.2kWh
VESS Mini 60K
AC: Normal Power 60kW
PV: 90kW / Max 135kW (optional)
Battery Nominal Energy: 102.4kWh
The VESS Mini Plus – available in 90K and 180K – is designed as an outdoor energy storage system with an IP54 rated enclosure and state-of-the-art thermal management.
VESS Mini Plus
Scalable: flexible and can be easily paralleled (side-by-side or back-to-back)
Fully-integrated battery modules, Power Conversion System (PCS), UPS, STS module, HVAC, Battery Management System (BMS), and Energy Management System (EMS) all in one storage
Supports both on-grid and off-grid operations; optional PV input and backup module
Global grid certified & listed PCS; compliance with global safety standards.
IP54 rating for moisture and dust protection
VESS Mini Plus 90K
AC: 30kVA*3
PV: 45kW*2
Battery Nominal Energy: 186.4kWh
VESS Mini Plus 180K
AC: 30kVA*6
PV: 45kW*4
Battery Nominal Energy: 372.7kWh
