Wind industry faces challenge of finding light, cost-efficient drivetrains for next gen turbines

0
As turbines increase in size and move into harsher offshore environments, drivetrain developments must keep apace if downtime is to be reduced. Direct drive systems or hybrid systems offer a solution, but the industry still faces the challenge to find innovative lightweight designs that are cost efficient.
Wind industry faces challenge of finding light, cost-efficient drivetrains for next gen turbines

European renewable energy targets for 2020 and beyond demand that every aspect of the offshore wind turbine is scrutinised for best performance, reliability and cost-efficiency. The drivetrain, the generator and the gearbox account for 14% of failures per turbine per year, but cause 39% of all downtime for the same period. The components, particularly in the gearbox, are subject to intense stress due to wind turbulence offshore, and are often the first parts to fail. Downtime at sea is much more pronounced, and improvement in the design of the drivetrain configuration will significantly reduce breakdowns.

The next generation of drivetrains under development include several innovative designs using direct drive systems, or hybrid systems. The trend towards direct drive is most prominent in the offshore market because of the need for greater reliability; but the challenge remains to produce a system which is light enough for the largest offshore turbines, yet cost efficient when compared with a conventional geared drivetrain.

Progression from current to future design

Wind turbines have previously used a gearbox to drive the generator, but it has always been considered a weak link. Extreme stress is placed on a gearbox by wind turbulence, and the need for larger gearboxes to service larger turbines offshore make the gearbox a vulnerable component. The cost of servicing an offshore turbine and the extended downtime has led to advances in direct drive technology, thus eliminating the gearbox and all associated failures.

Direct drive

With the generator rotating at the same speed as the turbine shaft in a direct drive system, designers have compensated by increasing the radius of rotation; using generators with a diameter of several metres. Larger generators would be needed for larger offshore wind turbines, and the problem facing developers is reducing the weight to make direct drive viable. Direct drive technology improves reliability, simplifies the nacelle assembly and helps to increase efficiency, but improvements must be made in cost efficiency and weight reduction.

Hybrid systems

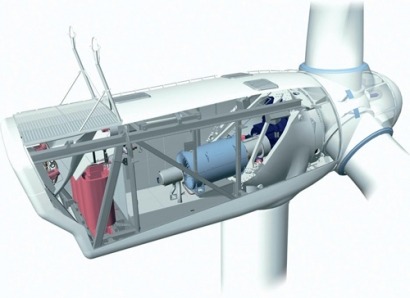

Hybrid systems combine a simple and more reliable gearbox with a direct drive system. The hybrid concept has gearing at megawatt scale, but also has a large diameter generator. The nacelle has a more compact design, with the gearbox and generator giving a balanced geometry to the system. The image of the WinWind 3MW turbine below demonstrates the suitability to offshore applications, as the nacelle does not extend too far from the tower centreline.

Future concepts

Progression towards 10MW and larger turbines requires lighter, more reliable drivetrains; and some of the technology being introduced and currently under trial will be examined in this section. It is not yet clear which type of drivetrain will best serve the wind energy industry long term; direct drive and hybrid systems will soon be joined on the market by new concepts in controlling the variable speed of the turbine.

Editor's note: This article was kindly provided by conference organisers, IQPC, who are responsible for the 2nd Drivetrain Concepts for Wind Turbines (Bremen, Germany) in October where issues such as those raised in this piece will be discussed.
