Stanford Researchers Show Skewing Turbines Boosts Farm Output

1
A new study by researchers at Stanford University claims that, like a speedboat slowed by choppy water from a boat in front, the wake from a wind turbine reduces the output of those behind it.
Stanford Researchers Show Skewing Turbines Boosts Farm Output

The study shows pointing turbines slightly away from oncoming wind – called wake-steering – can reduce that interference and improve both the quantity and quality of power from wind farms, and possibly lower operating costs

“To meet global targets for renewable energy generation, we need to find ways to generate a lot more energy from existing wind farms,” said John Dabiri, professor of civil and environmental engineering and of mechanical engineering and senior author of the paper. “The traditional focus has been on the performance of individual turbines in a wind farm, but we need to instead start thinking about the farm as a whole, and not just as the sum of its parts.”

Turbine wakes can reduce the efficiency of downwind generators by more than 40 percent. Previously, researchers have used computer simulations to show that misaligning turbines from the prevailing winds could raise production of downstream turbines. However, showing this on a real wind farm has been hindered by challenges in finding a wind farm willing to halt normal operations for an experiment and in calculating best angles for the turbine – until now.

First, the Stanford group developed a faster way to calculate the optimal misalignment angles for turbines, which they described in a study, published July 1 in Proceedings of the National Academy of Sciences.

Then, they tested their calculations on a wind farm in Alberta, Canada in collaboration with operator TransAlta Renewables. The overall power output of the farm increased by up to 47 percent in low wind speeds – depending on the angle of the turbines – and by 7 to 13 percent in average wind speeds. Wake steering also reduced the ebbs and flows of power that are normally a challenge with wind power.

“Through wake steering, the front turbine produced less power as we expected,” said mechanical engineering PhD student Michael Howland, lead author on the study. “But we found that because of decreased wake effects, the downstream turbines generated significantly more power.”

Variable output by wind farms makes managing the grid more difficult in two important ways.

One is the need for backup power supplies, like natural gas-fired power plants and large, expensive batteries. In the new study, the power improvement at low wind speeds was particularly high because turbines typically stop spinning below a minimum speed, cutting production entirely and forcing grid managers to rely on backup power

The other is the need to match the amount of electricity supplied and used in a region every moment to keep the grid reliable. Air turbulence from wakes can make wind farm production erratic minute by minute – a time period too short to fire up a gas generator. This makes matching supply and demand more challenging for system operators in the very short term. They have tools to do so, but the tools can be expensive. In the study, wake steering reduced the very short-term variability of power production by up to 72 percent.

To calculate the best angles of misalignment for this study, the researchers developed a new model based on historical data from the wind farm.

“Designing wind farms is typically a very data and computationally intensive task,” said Sanjiva Lele, a professor of aeronautics and astronautics, and of mechanical engineering. “Instead, we established simplified mathematical representations that not only worked but also reduced the computational load by at least two orders of magnitude.”

This faster computation could help wind farm operators use wake steering widely.

“Our model is essentially plug-and-play because it can use the site-specific data on wind farm performance,” Howland said. “Different farm locations will be able to use the model and continuously adjust their turbine angles based on wind conditions.”

The next step, said Dabiri, is to run field tests for an entire year.

“If we can get to the point where we can deploy this strategy on a large-scale for long periods of time, we can potentially optimize aerodynamics, power production and even land-use for wind farms everywhere,” said Dabiri.

Dabiri is also a senior fellow at the Precourt Institute for Energy and a member of Stanford Bio-X. Lele is also a member of Stanford Bio-X.

This research was supported by the National Science Foundation, a Stanford Graduate Fellowship and Stanford’s TomKat Center for Sustainable Energy. Field tests were conducted in collaboration with TransAlta Corp.

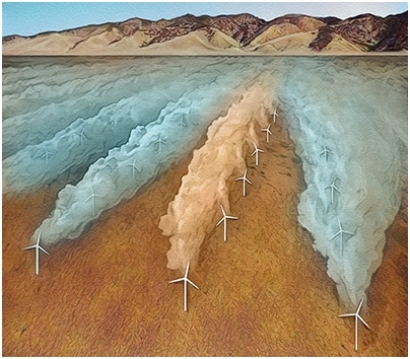

Photo: Wind farm operators traditionally face their turbines directly into the wind.
New research shows that angling turbines slightly away from the wind
steers their wakes away from downstream turbines and improves wind farm production. (Image credit: Rebecca Konte)
